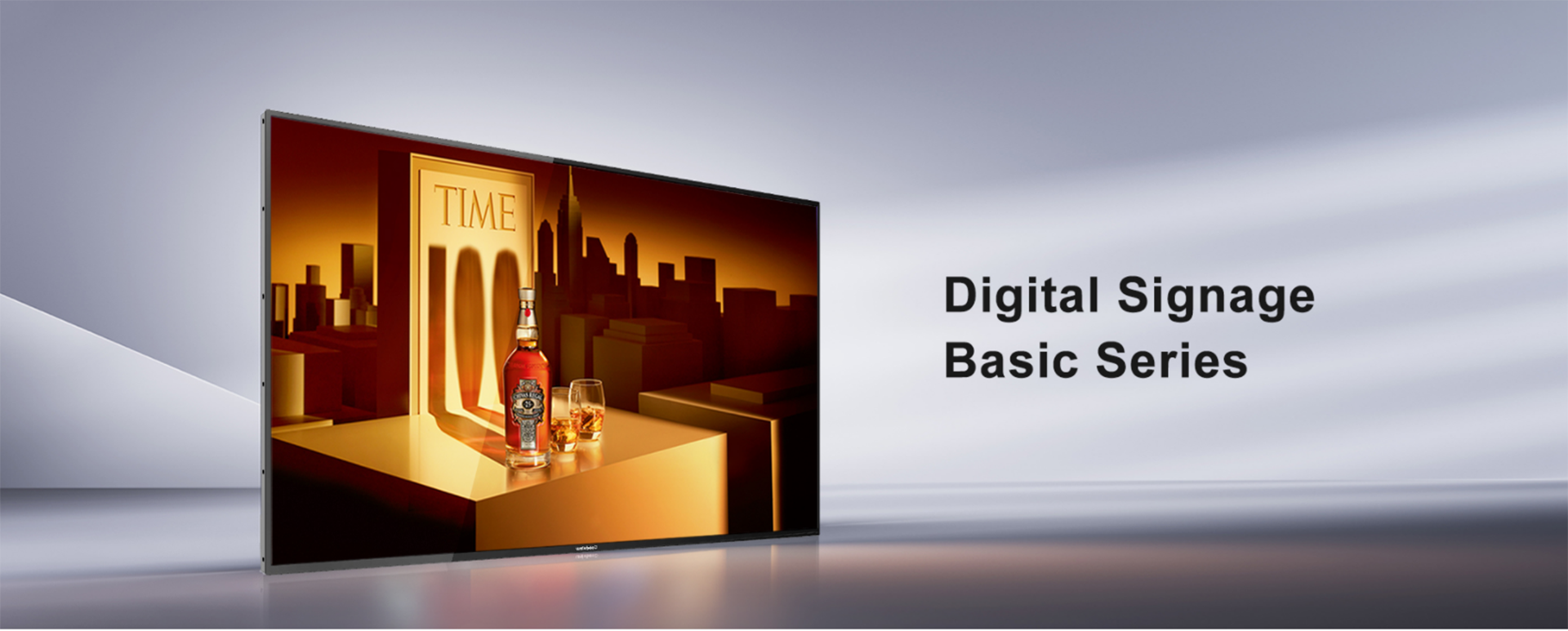

Digital Signage Basic Series For Business

Size

32'' 43'' 49'' 55''
Inquiry
SAH
Overview Specs Resources Recommendation Inquiry

Overview

SAH-1 SAH-2 SAH-3 SAH-4 SAH-5 SAH-6 SAH-7 SAH-8 SAH-9 SAH-10 SAH-11 SAH-12 SAH-13

Specs

Display Panel

Resolution

1920×1080

Brightness

700 cd/m2

Orientation

Horizontal screen, Vertical screen, full screen and split screen play

Contrast ratio

1200:1

Responded time

12ms

Active Display Area (H×V)

941.2（H）×529.42（V）

Color Gamut

Color Gamut

Life Time

50000hours

Main Board

OS

Android 5.1

CPU

Four cores ARM Cortex A17 （Max1.8GHz）

GPU

Four cores ARMMail-764

Memory

2GB

Storage

8G eMMC

OPS slot

/

Connectivity & Sound

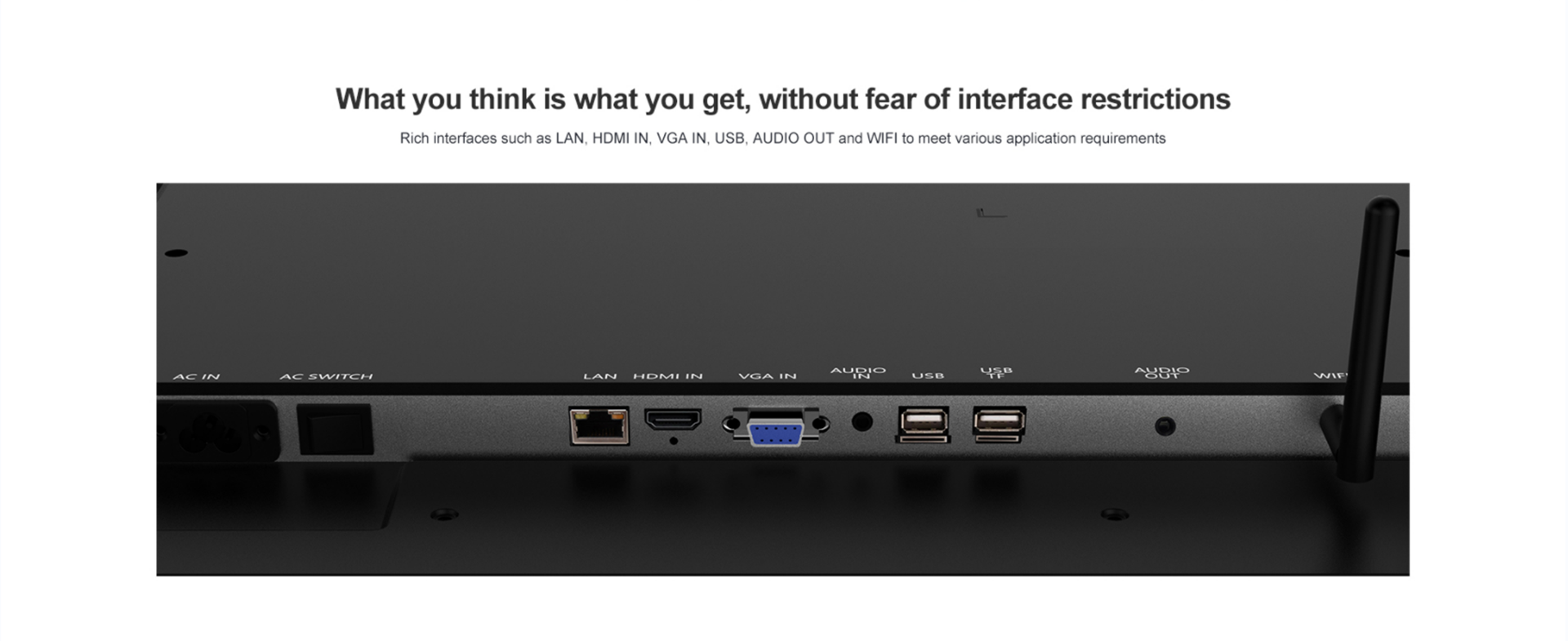

Input

VGA IN×1、HDMI IN×1、VGA Audio IN×1、AV（BNC）×1

Output

Wifi & BT

External Control

Speaker

Mechanical Specification

Dimension (set/package)

Set

963.6（H）×557.92（V）×48.1（D）

Package

1063.1（H）×653.5（V）×165.2（D）

Set

1232（H）*708.9（V）*49.9（D）

Package

1362（H）*825.4（V）*178.7（D）

Weight(kg)

Set

19.45kg

Package

24.6kg

VESA mount

400*200

Power

Power comsumption

45W (Max)

Operating condition

Temperature

0-40℃

Humidity

10%-80%

SHOW LESS SPEC specs_btn
